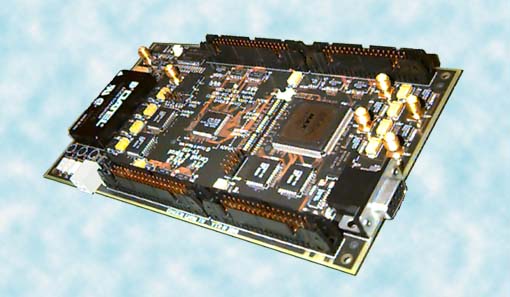

EV-4114
Quad Digital Transmitter Board

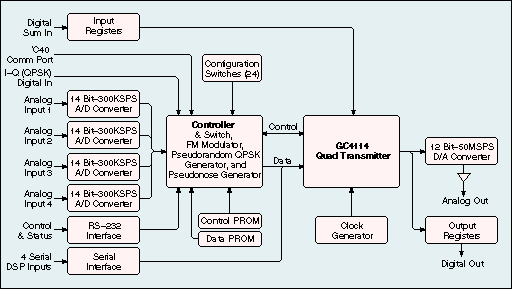

The EV-4114 gives you the power to completely and thoroughly test the GC4114 as well. Any computer can control all aspects of GC4114 operation using the high speed RS-232 port. There are many different ways of driving the board with signal data. You can digitize and put 4 signals on the air simultaneously using the built-in 14 bit, 300 KSPS, A/D converters. Most DSP chips interface directly using their standard serial ports or the TMS320C40's comm port. There is a symbol serial (I, Q, and clock) digital interface for QPSK modulation. An FM modulator and a pseudonoise source are provided. You can monitor the output signal using the built-in 12 bit, 50 MSPS D/A converter. And finally, high speed (50 MSPS) digital input and output interfaces round out the I/O and allow multiple EV-4114s to be daisy-chained so you can sum 8, 12, or more channels together.
DATASHEET AND MANUAL:
The
EV-4114 Datasheet (123K) in PDF format is available for downloading. We
can also fax or mail you the datasheet. Detailed information on the EV-1014 is published
in the
EV-4114 Manual (164K), also in PDF format.
ORDERING INFORMATION:
The price of the EV-4114 is $6750 in
the United States plus any applicable taxes. The price for orders
shipped outside of the United States is $7425. Delivery is 2 to 4 weeks ARO subject to parts availability.
Purchase orders may be faxed to Coryell & Wiprud at 408-357-5551. Confirming purchase
orders may be mailed to Coryell & Wiprud, 23064 Summit Road, Los Gatos CA, 95030 USA.
